Built-in vacuum drying cabinet

EWA VETK 27

Vacuum drying directly in the process

The EWA VETK 27 is a vacuum drying cabinet for installation in a console or in an isolator. This allows vacuum drying to be integrated directly into your process.

Request a quote

Highlights


Compact design, suitable for installation in a console or an isolator

GMP-compliant design

Smooth inner surfaces (Ra < 0.8 µm), easy to clean

Viewing window in the door on request

Technical data

EWA VETK 27 at a glance

Interior

Interior dimensions (W × D × H)	300 × 300 × 300 mm
Interior material	Stainless steel 1.4571 (V4A)
Surface roughness of interior	Ra < 0.8 µm
Distance between the shelves	130 mm

Installation and design

Installation	Console or isolator
Design	GMP-compliant
Vacuum generation	Diaphragm vacuum pump
Loading	only manually

Temperature and vacuum

Temperature range	up to 120 °C
Final vacuum	1 × 10⁻² mbar

Control and power supply

Control	Separate control
Temperature control	Temperature controller with actual/setpoint display
Vacuum control	Vacuum controller
Power supply	upon request

Views

The EWA VETK 27 in detail



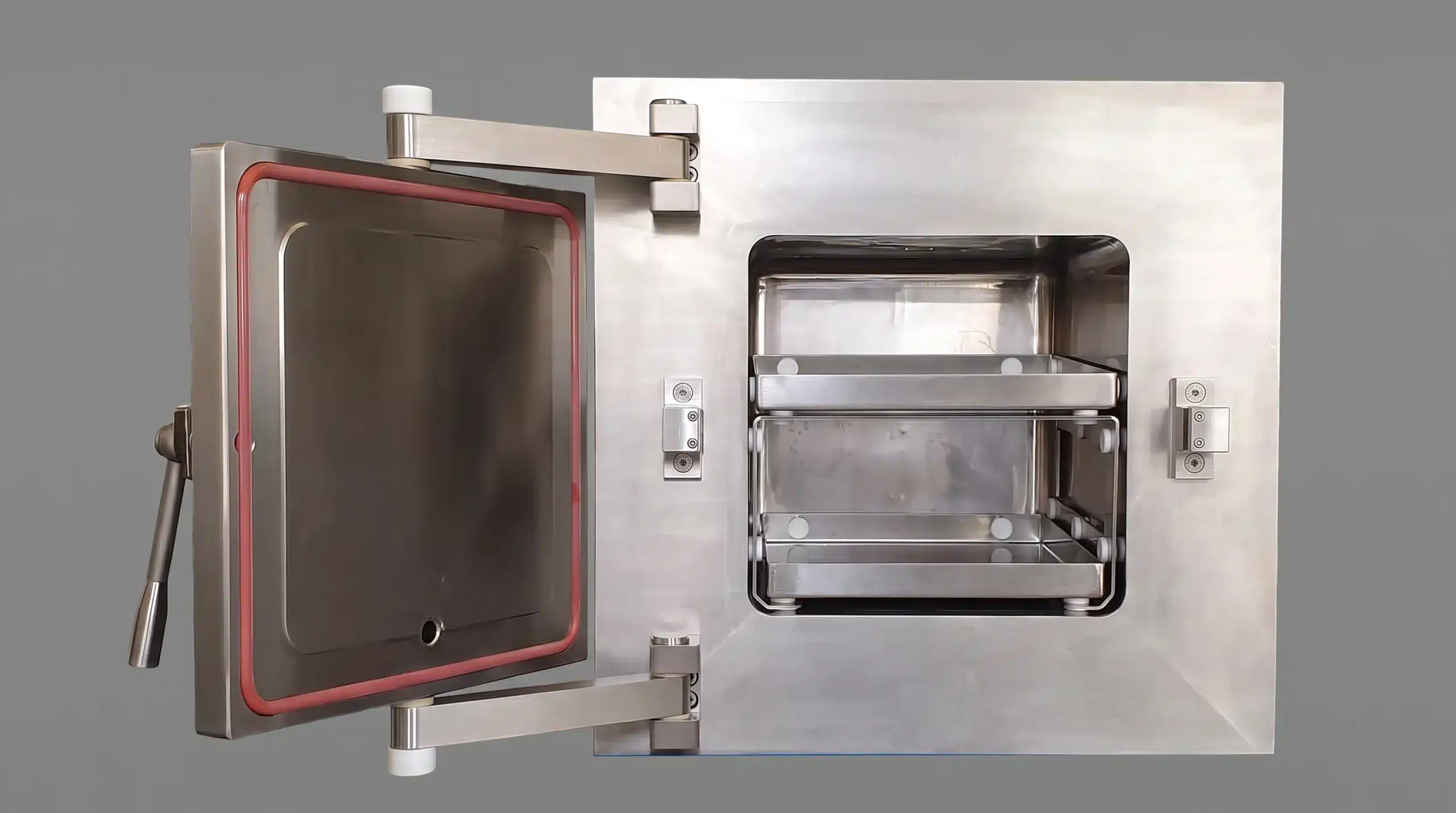

Interior with two slide-in trays


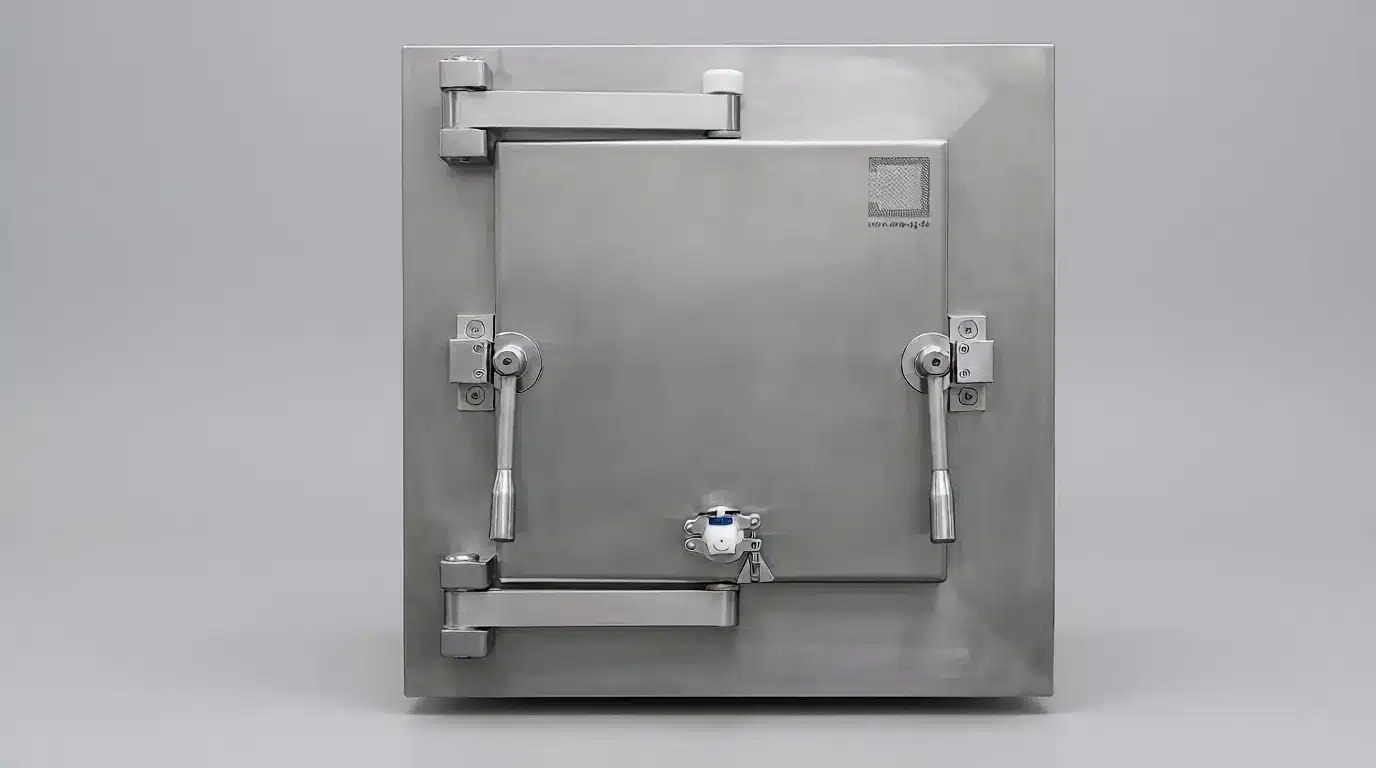

Stainless steel door with two locking levers, viewing window on request

Double-joint hinges

Note: All EWA devices are custom-built and not off-the-shelf products. They are built specifically to your wishes and requirements. Depending on the order, intended use and equipment, your device may differ from the illustrations shown here and the technical data listed. Technical changes and deviations reserved.

Areas of application

Suitable for


Vacuum drying directly in the process, built into a console or isolator

Drying and dehumidifying under vacuum

GMP-compliant use

Industries

In use at


Pharmaceutical industry & active pharmaceutical ingredients (APIs)

Specialty & fine chemicals

Electronics & Semiconductors

Frequently asked questions

Questions about the EWA VETK 27

How is the EWA VETK 27 installed?

The EWA VETK 27 is designed for installation in a console or in an isolator. This way, vacuum drying is integrated directly into your process. The controller is a separate unit.

How large is the interior space of the EWA VETK 27?

The interior measures 300 × 300 × 300 mm (W × D × H) and is made of stainless steel 1.4571 (V4A) with a surface roughness of Ra < 0.8 µm. The distance between the shelves is 130 mm. The smooth interior surfaces are easy to clean.

Up to what temperature does the EWA VETK 27 operate?

The temperature range extends up to 120 °C. The vacuum is generated by a diaphragm vacuum pump; temperature and vacuum are controlled via a temperature controller and vacuum controller. You will find more devices in the Product overview and under Applications of vacuum drying.
