Vacuum drying chamber

EWA VETK 2000

Special material with tray rack and heated door

The EWA VETK 2000 is a large vacuum drying chamber with a tray rack and heated door. The interior is made of stainless steel, with the special material Hastelloy® C-22 in addition. The separate control cabinet combines the controller and emergency stop.

Request a quote

Highlights


Interior made of stainless steel 1.4404, additionally special material Hastelloy® C-22, also known as Alloy C-22 or 2.4602

Heated door with viewing window

Tray rack with several slots

Separate control cabinet with controller and emergency stop

Technical data

EWA VETK 2000 at a glance

Interior

Interior dimensions (W × D × H)	900 × 1100 × 2000 mm
Volume	about 2000 liters
Interior material	Stainless steel 1.4404 (V4A)
Special material	Hastelloy® C-22, also known as Alloy C-22 or 2.4602
Construction	Tray rack with several slots

Design

Door	heated, with viewing window
Vacuum generation	Vacuum pump
Loading	as per customer request

Temperature and vacuum

Temperature range	up to 120 °C
Final vacuum	1 × 10⁻² mbar

Control and power supply

Control	Control cabinet with controller and emergency stop
Power supply	upon request

Views

The EWA VETK 2000 in detail



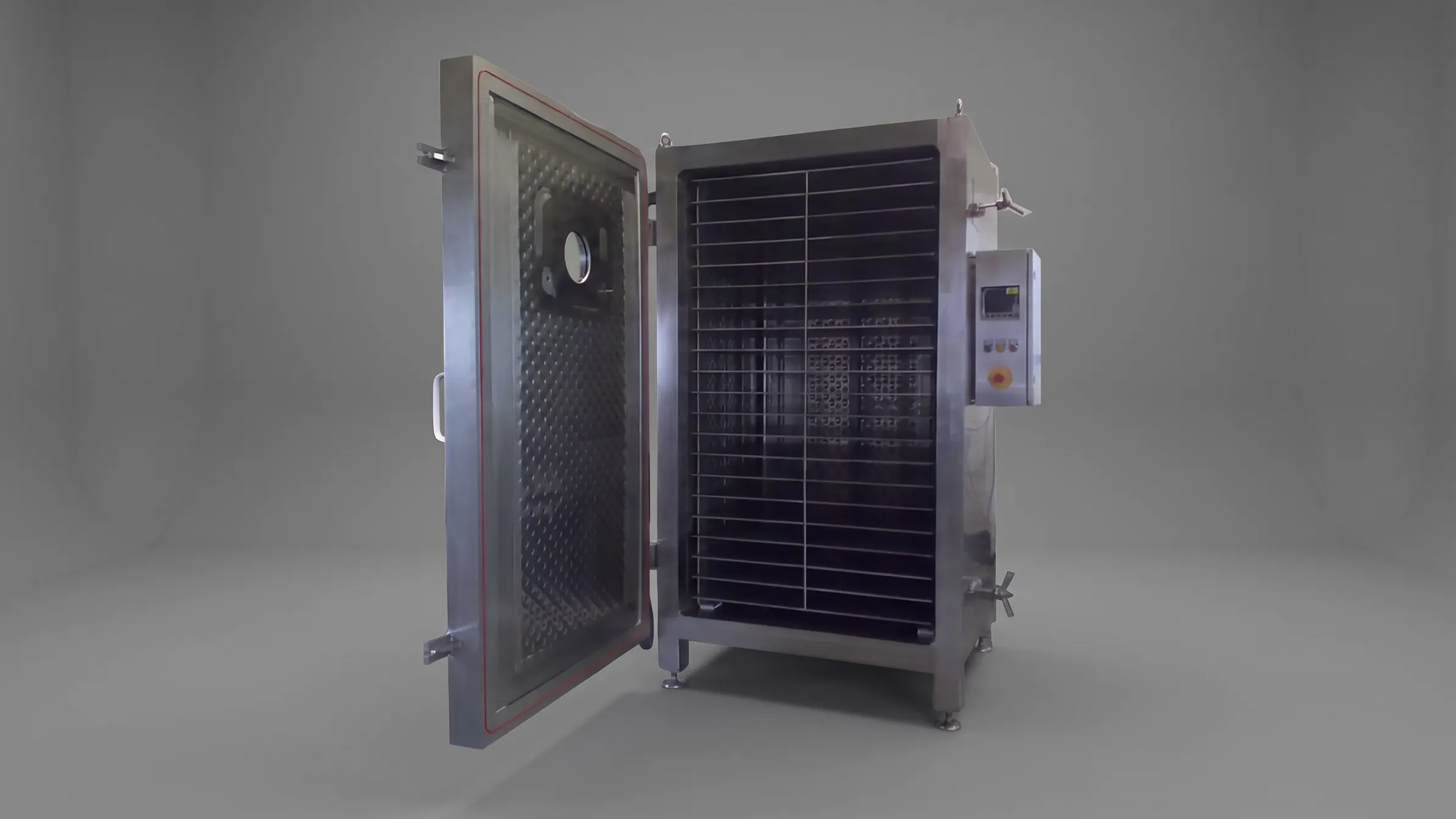

Interior with tray rack and several slots

Heated door with viewing window

Note: All EWA devices are custom-built and not off-the-shelf products. They are built specifically to your wishes and requirements. Depending on the order, intended use and equipment, your device may differ from the illustrations shown here and the technical data listed. Technical changes and deviations reserved.

Areas of application

Suitable for


Drying powders and granules

Material separation, degassing, sample storage

Evaporating, condensing, absorbing

Industries

In use at


Pharmaceutical industry & active pharmaceutical ingredients (APIs)

Specialty & fine chemicals

Carbide & machining

Electronics & Semiconductors

Frequently asked questions

Questions about the EWA VETK 2000

How large is the interior of the EWA VETK 2000?

The interior measures 900 × 1100 × 2000 mm (width × depth × height), is made of stainless steel 1.4404 and is equipped with a tray rack with several slots. In addition, the special material Hastelloy® C-22 is used, also known as Alloy C-22 or material 2.4602.

Up to what temperature does the EWA VETK 2000 operate?

The EWA VETK 2000 operates up to 120 °C. The final vacuum is 1 × 10⁻² mbar; vacuum is generated by a vacuum pump. The door is heated and has a viewing window; the controller and emergency stop are located in the separate control cabinet. You will find more devices in the Product overview and under Applications of vacuum drying.

How is the EWA VETK 2000 loaded?

Loading depends on your process and is designed according to customer requirements, for example by hand, with a tray trolley or via an airlock. Let us know your preference in the individual inquiry .
