Vacuum drying cabinet

EWA VRTK 130

Precious metal recovery with integrated pump stand

The EWA VRTK 130 is a vacuum drying cabinet with a round interior, for example for recovering precious metals in recycling. The vacuum pump stand, condenser and collecting container are integrated.

Request a quote

Highlights



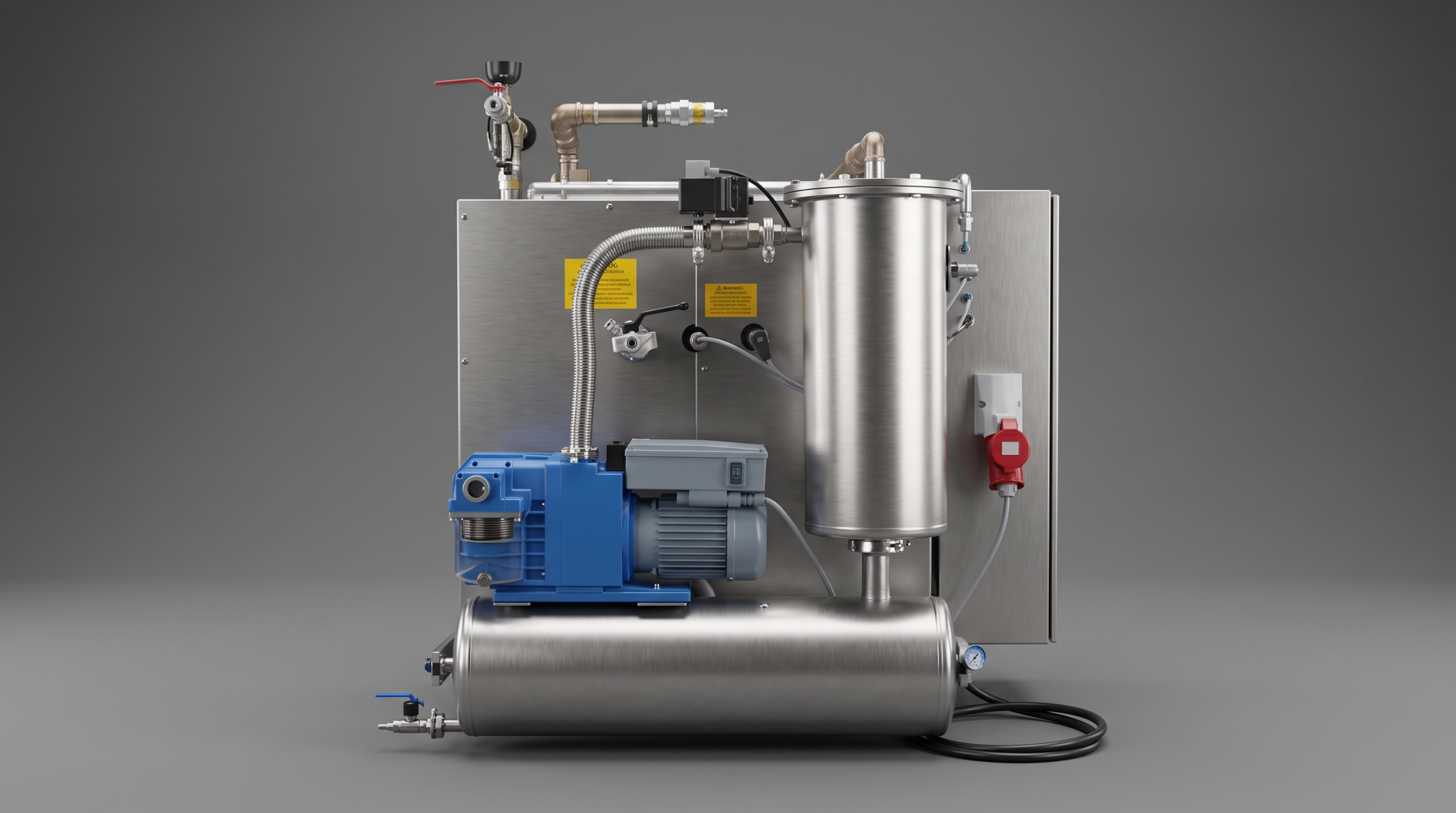

Vacuum pump stand with integrated condenser and collecting container

Temperatures up to 400 °C

Round interior, for example for recovering precious metals in recycling

Technical data

EWA VRTK 130 at a glance

Interior

Interior (Ø × depth)	500 × 500 mm, round
Usable space	about 130 liters
Interior material	Stainless steel

Design

Vacuum generation	Vacuum pump stand, integrated with condenser and collecting container
Loading	only manually

Temperature and vacuum

Temperature range	up to 400 °C
Final vacuum	1 × 10⁻² mbar

Control and power supply

Temperature control	Temperature controller, temperature display for the product
Vacuum display	Digital pressure display
Power supply	upon request

Views

The EWA VRTK 130 in detail



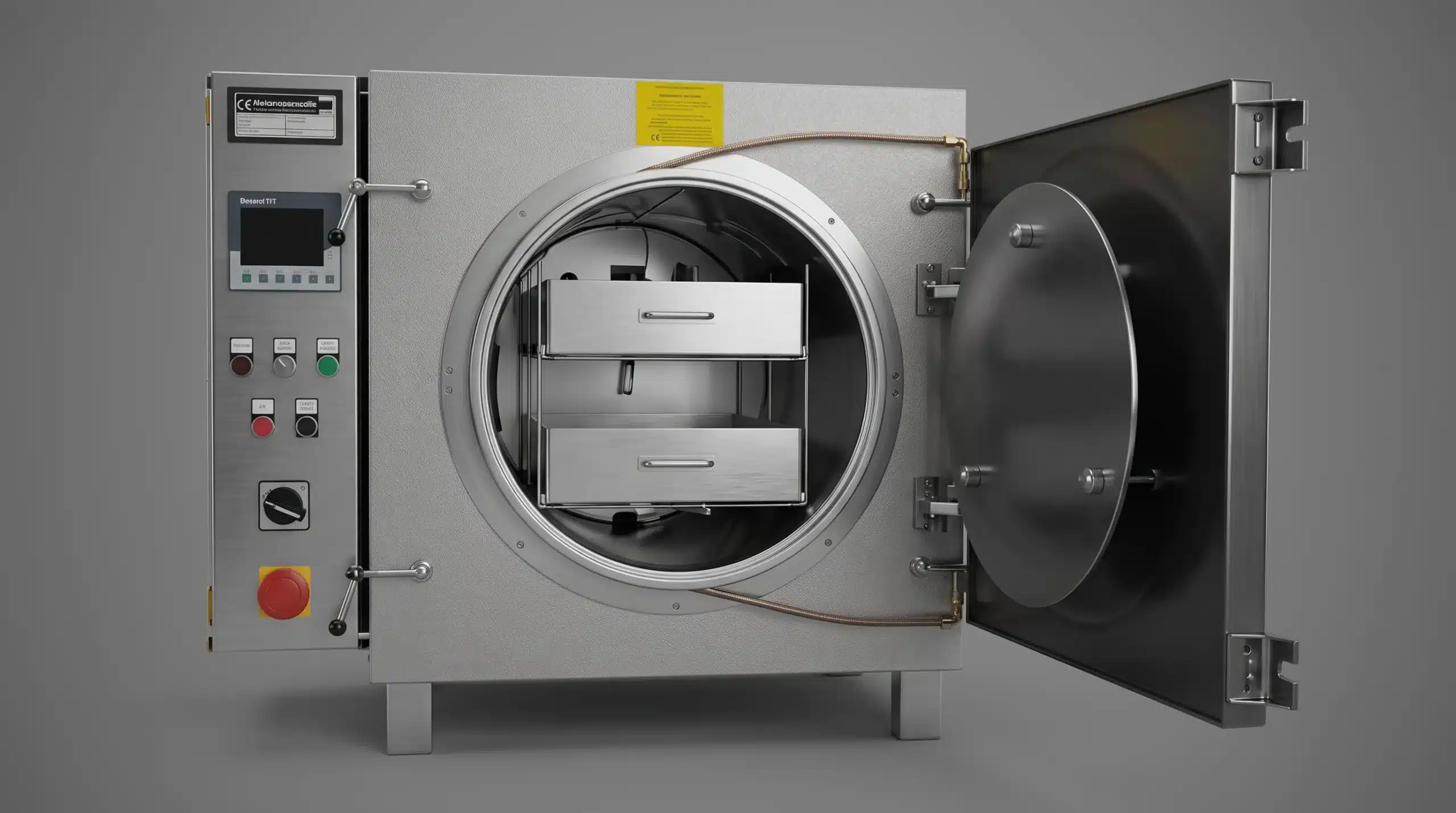

Round interior made of stainless steel

Direct drain from the oven chamber to the receiver: no liquid leaks out when the door is opened

The condenser can easily be dismantled when needed, which makes servicing easier

Note: All EWA devices are custom-built and not off-the-shelf products. They are built specifically to your wishes and requirements. Depending on the order, intended use and equipment, your device may differ from the illustrations shown here and the technical data listed. Technical changes and deviations reserved.

Areas of application

Suitable for


De-oiling chips and recycling metals

Chips from turning, milling, planing, grinding sludge, stamping waste with cooling lubricant

Processing sludge and oils

Industries

In use at


Carbide & machining

Metalworking (turning, milling, grinding, punching)

Recycling & Precious Metals

Frequently asked questions

Questions about the EWA VRTK 130

How large is the interior of the EWA VRTK 130?

The interior is round and measures 500 × 500 mm (Ø × depth); the usable volume is approx. 130 liters. The interior is made of stainless steel.

Up to what temperature does the EWA VRTK 130 operate?

The temperature range extends up to 400 °C. The vacuum is generated by an integrated pump stand with condenser and collecting container; temperature and pressure are controlled via a temperature controller and digital pressure display. You will find more devices in the Product overview and under Applications of vacuum drying.
